General Information and Business Terms:
| Place of Origin | CHINA |
| Brand Name | ANBEN FIRE |
| Model Number | RHZK6.8 |
| Certification | EN137 |
| Minimum Order Quantity | 10 |
| Price | |
| Packaging Details | 70*45*35CM |
| Delivery Time | 10DAYS |
| Payment Terms | TT |
| Supply Ability | 500PCS |
Quick Detail:

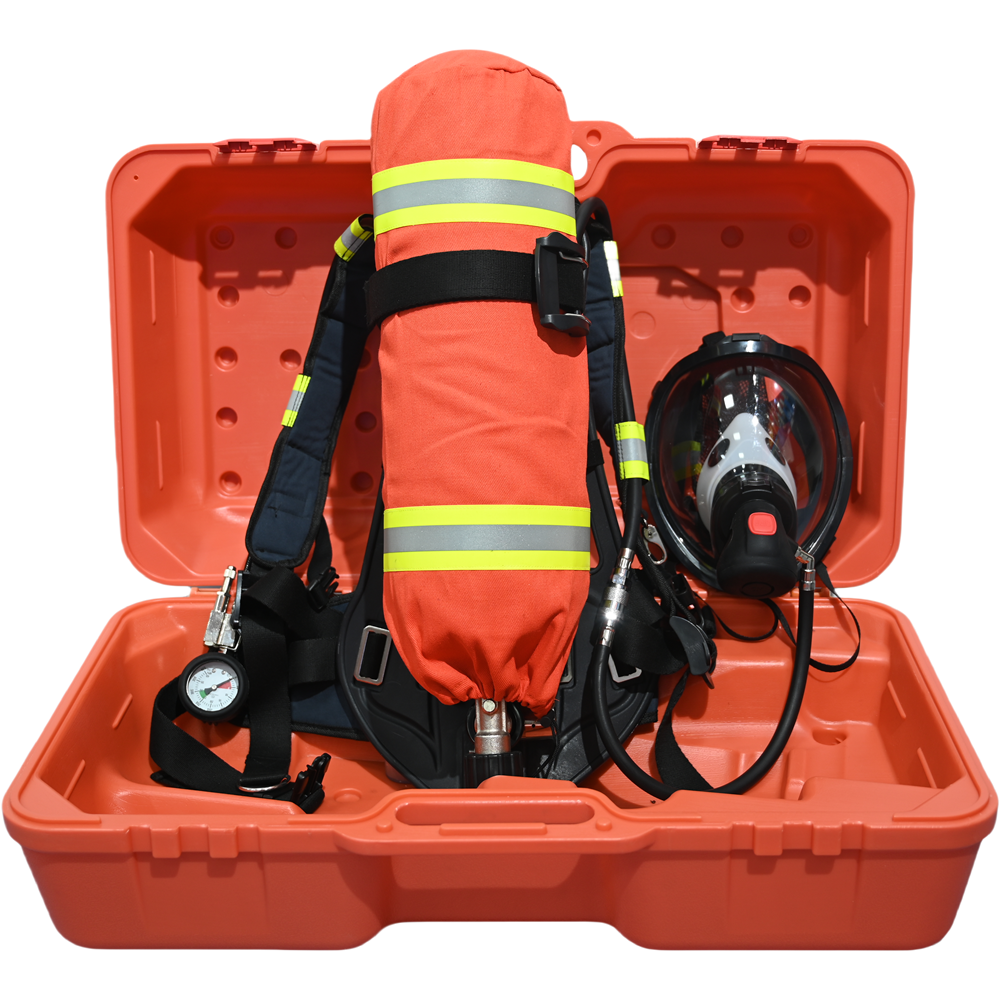

Air Breathing Apparatus,Carbon Fiber Aluminum alloy Cylinder,6.8L,60min Using Time.
Description:
The SCBA provides user sufficient air by equipped with one or two gas cylinder.
The air is compressed to store in the gas cylinder (the pressure of the gas cylinder is 30MPa).But the air in the gas cylinder can’t be breathed by user immediately. It must be decompressed twice through the related parts. First,the pressure regulator decompresses the high pressure air to 0.7MPa, and then transporting it into the medium-pressure pipelines, at last, through the air supply valve, the air is decompressed again to the positive air which can be breathed by the user.
Because the air provided by air supply valve is positive air, the pressure inside the face mask is always higher than outside working environment. So the toxic gas and aerosol and smog can’t enter into the face mask, which fully protect the safety of users.
Applications:
Applicable to firefighters or rescue workers in toxic or harmful gas nvironment, containing harmful substances such as smoke and oxygen and other environments, to provide effective respiratory protection for users.
Widely used in fire protection, electric power, chemical, ship, smelting, warehouse, laboratory, mining and other departments.
Specifications:
| Gas Mask Visual Field | >96% |
| Inhalation | 30L/min |
| Cylinder Material | Carbon Fiber+Aluminum alloy |
| Cylinder Capacity | 2040L |
| Exhalation Resistance | <1000Pa |
| Inhalation Resistance | <500Pa |
| Operation Temperature | -30℃-60℃ |
| Alarm Pressure | 5.5Mpa |
| Working pressure | 30Mpa |
| Service Time | 60min |
| Alarm Sound | 90DB |
| Weight | 17kg |
| Packing | Plastic Case(black or Orange) |
Competitive Advantage:
*With anti -fog, anti-glare, wide field of view, good air tightness and comfortable wearing face mask.
*The gas supply valve is small in volume, large in gas supply, not affect the field of view during use.
*Carbon fiber backplate, Light weight and high strength., designed for more comfortable and Convenient wear.
*Pressure reducer is built-in safety valve, no adjustment device, maintenance -free. It has a spare inter face.
*Light weight pressure gauge has waterproof, shockproof and luminous display shockproof and luminous display and accurate in alarm.
*The bottle valve is equipped with a ratchet check device to prevent unintentional closing during use.
*The same set of backing plate 3.0L,6.0L,6.8L and 9.0L carbon fiber composite gas cylinders can be replaced at will.
